The UN Secretariat Building, Le Corbusier and the Golden Ratio

June 25, 2014 by Gary Meisner 7 Comments

UN Secretariat Building west side front viewSome claim that the design of the United Nations headquarters building in New York City exemplifies the application of the golden ratio in architecture. Debunkers of the golden ratio say no, that this is just another groundless myth to be dispelled. Let’s look at the history of its design, the sources of the claims and mathematics of the dimensions. Perhaps we can come to a solid conclusion that can be agreed upon by all.

A lead architect of the UN Building, Le Corbusier, created a system of design based on the golden ratio

The building, known as the UN Secretariat Building, was started in 1947 and completed in 1952. The architects for the building were Oscar Niemeyer of Brazil and and the Swiss/French architect Le Corbusier. On Corbusier, Wikipedia states:

Le Corbusier explicitly used the golden ratio in his Modulor system for the scale of architectural proportion.

Explaining the Modulor, Wikipedia states:

Le Corbusier developed the Modulor in the long tradition of Vitruvius, Leonardo da Vinci’s Vitruvian Man, the work of Leone Battista Alberti, and other attempts to discover mathematical proportions in the human body and then to use that knowledge to improve both the appearance and function of architecture. The system is based on human measurements, the double unit, the Fibonacci numbers, and the golden ratio. Le Corbusier described it as a “range of harmonious measurements to suit the human scale, universally applicable to architecture and to mechanical things.”

Click on the image below for the full resolution view of the Modulor. The primary dimensions of 1130 to 698 creates a golden ratio, as does the ratio of  698 to 432. The other dimensions represent nested golden ratios. This same concept of expanding the dimensions of each section by the golden ratio can be found in the design proportions of the UN Secretariat Building.

le-corbusier-le-modulor
UN-Secretariat-Building-West-Side-Modulor
UN Secretariat Building dividing lines based on golden ratios

Le Courbusier developed his concepts in 1943 and presented them in the US in 1946, shortly preceding the start of the UN Secretariat construction in 1947

The article also notes that Le Courbusier first devised the Modulor system in 1943, presented his concepts in the US in 1946 and published the Modulor in 1948. Construction on the UN Secretariat Building was started in 1947 and completed in 1952, so we can assume it was in the forefront of Le Corbusier’s thinking at the time the building was designed. According to Wikipedia sources, Richard Padovan states on page 316 of his book “Proportion: Science, Philosophy, Architecture:

Le Corbusier placed systems of harmony and proportion at the centre of his design philosophy, and his faith in the mathematical order of the universe was closely bound to the golden section and the Fibonacci series, which he described as “rhythms apparent to the eye and clear in their relations with one another. And these rhythms are at the very root of human activities. They resound in Man by an organic inevitability, the same fine inevitability which causes the tracing out of the Golden Section by children, old men, savages, and the learned.

Note: All golden ratio lines shown on images on this page were created with PhiMatrix Design and Analysis software and are accurate to within one pixel.

The other lead architect, Niemeyer, was heavily influenced by Le Corbusier and used golden ratios in a previous building designed with Le Corbusier

Le Corbusier conceived a tall central building that would house all the Secretariat offices. Le Corbusier’s plan, known as project 23A, was taken as the basis for the design.

On Niemeyer, Wikipedia states with respect to his role in the United Nations project:

Niemeyer’s scheme 32 was approved by the Board of Design, but he eventually gave in to pressure by Le Corbusier, and together they submitted project 23/32 (developed with Bodiansky and Weissmann), which combined elements from Niemeyer’s and Le Corbusier’s schemes.

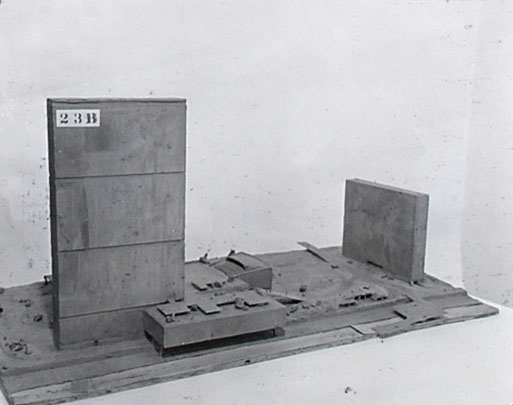

UN Model 23B - Le Corbusier

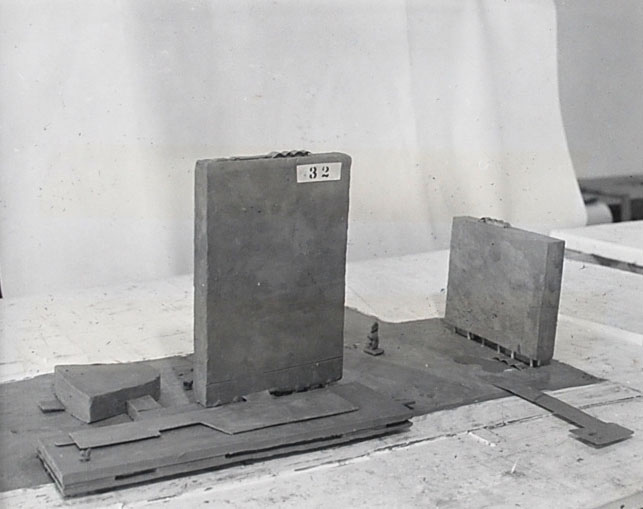

UN Model 32 - Niemeyer

Niemeyer said his architecture was strongly influenced by Le Corbusier. In 1936, the architecture firm Niemeyer worked for, Lucio Costa, was awarded a contract to design the new headquarters of Brazil’s Ministry of Education and Health in Rio de Janeiro. Costa invited Le Corbusier to be a consultant on the project, and Niemeyer joined the design team. The building they created also appears to have golden ratios in its design.

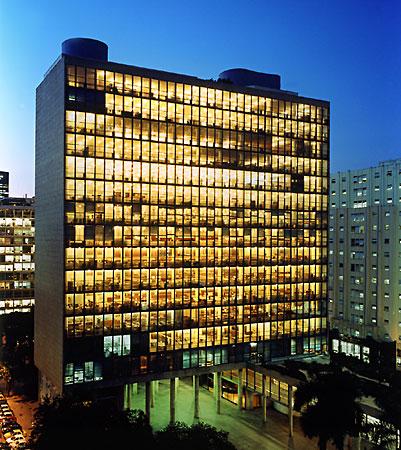

Ministry-of-Education-Brazil
Brazil-Ministry-of-Education-Colonnade-Golden-Ratio

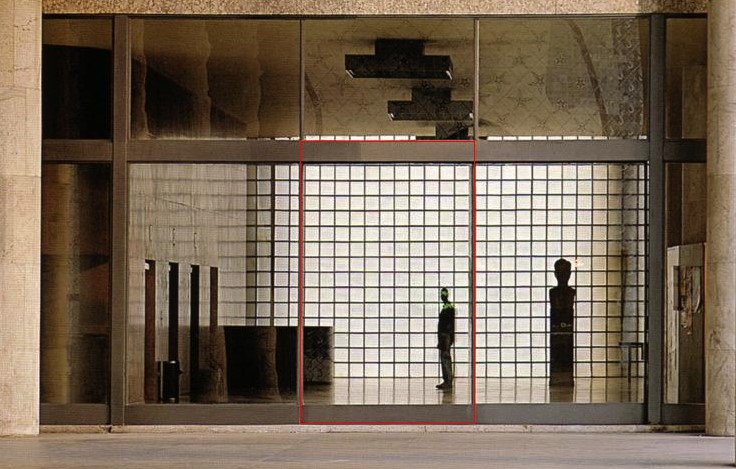

Brazil-Ministry-of-Education-Lobby-Door-Golden-Ratio

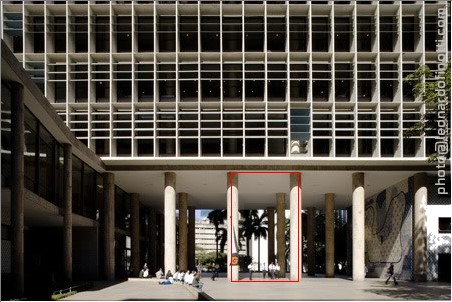

The building features golden rectangles in the columns of its colonnade, and three vertical golden rectangles adjoined horizontally in the interior entry. This is shown by the red lines in the above images. The interior entry appears to use the same concept of proportion in design as the three horizontal golden rectangles adjoined vertically in the UN Secretariat Building’s height and width, as illustrated in a following section of this article. Given all this as a foundation, it certainly would not be surprising to find golden ratios in the collaborative design of the UN Secretariat building by Le Corbusier and Niemeyer. To the contrary, it would seem almost inevitable, but let’s not stop there.

Golden ratios in the UN Building were illustrated in an award-winning Disney educational film

One of the most commonly referenced sources for the claim of the golden ratio in the design of the UN Building is the Disney 27-minute educational feature film titled “Donald in Mathmagic Land.” It was released on June 26, 1959, just seven years after completion of the Secretariat building. Wikipedia states:

In 1959, it was nominated for an Academy Award (Best Documentary – Short Subjects). In 1961, two years after its release, it had the honor of being introduced by Ludwig Von Drake and shown on the first program of Walt Disney’s Wonderful World of Color. The film was made available to schools and became one of the most popular educational films ever made by Disney. As Walt Disney explained, “The cartoon is a good medium to stimulate interest. We have recently explained mathematics in a film and in that way excited public interest in this very important subject.”

Years after starting this site, I came across this movie and only then recalled having seen it back in the 1960’s when I was in school. It’s a delightful animation covering some very interesting aspects of mathematics, the golden ratio and Fibonacci sequence. It shows appearances of the golden ratio in the pentagon, nature, art and architecture, including illustrations of the UN Building captured in the animation below: Disney-Mathmagic-UN-Secretariat-Building-golden-ratio-animation You can watch the entire video of Donald in Mathmagic Land here, and find the UN Building scene at the 10:21 minute mark: http://www.youtube.com/watch?v=ELjEM4C2QSQ So with Le Corbusier, Oscar Niemeyter, Walt Disney and Donald Duck all backing the golden ratio, it must be the basis for the design of the UN Building, right? The debunkers still say no, so let’s test it.

The three stacked golden rectangles in the building’s design are easily validated by a simple calculation

The height of the building varies somewhat due to the variation in elevation between street level and river level. It is 505 feet tall on the west side street entrance level. The east side river level shown in the Disney move illustration is 544 feet tall. The width of the building is 287 feet and its depth is 72 feet. The Disney film illustrates three golden rectangles stacked on top of each other, so let’s do the math. If the width of the golden rectangle is 287 feet, its height is 287 divided by 1.618 or 177.4 feet. Three golden rectangles stacked on top of each other would be 177.4 times 3, which is 532.2 feet.

287 ft wide ÷ 1.618 × 3 = 532.2 ft, and the building height is 544 feet

This is only 2.2% less than its east side river level height of 544 feet. So why would the dimensions not be exactly a golden ratio, if that is in fact what the architects had intended? In addition to the variations in the elevation of the land from the street to the river, a more likely answer is this:

  • The golden ratio is an irrational number that cannot be expressed in integers.
  • Architects are faced with a number of real world constraints that are based on integers, such as the number of floors and windows.
  • They also face constraints set by various building standards for standard dimensions of construction materials, such as drywall and building framing components.
  • There are the engineering constraints required to construct a stable, lasting 500 foot skyscraper that take precedent over its artistic design elements.

Even with these constraints, there are many golden ratios in its design, as presented below. The Disney film seems to imply though that the two horizontal dividing lines on the face of the building divide the building in equal thirds. This, however, is a simplification of the actual design dimensions, and perhaps a source of the confusion as to whether the building is based on the golden ratio. Let’s explore further.

The dividing lines on the face of the entrance to the UN Building are easily shown to be based on golden ratios

As much as Corbusier may have loved the golden ratio, you can’t easily divide a 505 foot building by an irrational number like the golden ratio, 1.6180339887…, into its 39 floors and have them all come out equal in height and exactly at a golden ratio point. The building was designed with 4 noticeable non-reflective bands on its facade, with 5, 9, 11 and 10 floors between them. Interestingly enough, this configuration divides the west side entrance to the building at several golden ratio points, illustrated with PhiMatrix software in the photos below. An interesting aspect of the building’s design is that these golden ratio points are more precise because the first floor of the building is slighter taller than all the other floors, and the top section for mechanical equipment is also not exactly equal to the height of the other floors. The photo on the left shows lines based on Le Corbusier’s Modulor system, which are created when each rectangle is 1.618 times the height of the previous one. The photo on the right shows the golden ratios lines which are created when the dimension of the largest rectangle is divided again and again by 1.618. Both approaches corroborate the presence of golden ratio relationships in the design. Click on either image to see the full size version.

UN-Secretariat-Building-West-Side-Modulor
UN Secretariat Building dividing lines based on golden ratios
UN-Secretariat-Building-West-3-Golden-Ratios-with-PhiMatrix
UN Secretariat Building golden ratios

The photo on the left illustrates a Modulor progression in golden ratio dimensions, starting with the height of the entrance and building to the bottom of the first two dividing lines. In the photo on the right, the first golden ratio point defines the middle of the second non-reflective band. This is based on the height from the base at street level to the top of the building, as illustrated by the green lines. How was this achieved? The building has 39 floors, but the extended portion for mechanical equipment on the top makes it about 41 floors tall. 41 divided by 1.618 creates two sections of 25.3 floors and 15.7 floors. The golden ratio point indicated by the red lines is midway between the 15th and 16th floors, or 15.5 floors from the street. This means that the building was designed with a golden ratio as its foundation.

Approximately 41 floors ÷ 1.618² ≅ 15.7 floors, and the visual dividing line is midway between the 15th and 16th floor.

A second golden ratio point defines the position of the third of the four non-reflective bands. This is based on the distance from the top of the building to the middle of the first non-reflective band, as illustrated by the yellow lines.

Approximately (41 – 5.5 floors) ÷ 1.618² ≅ 21.9+5.5 floors ≅ 27.4 floors, and the visual dividing line is midway between the 26th and 27th floor.

A third golden ratio point defines the position of the first and second of the four non-reflective bands. This is based on the distance from the base of the building to the top of the second non-reflective band, as illustrated by the blue lines. Mathematically, the 16 floors would be divided by 1.618 to create an ideal golden ratio divisions of 9.9 floors and 6.1 floors. This second dividing line on the building is at the 6th floors.

16 floors ÷ 1.618² ≅ 6.1 floors, and the visual dividing line is at the 6th floor.

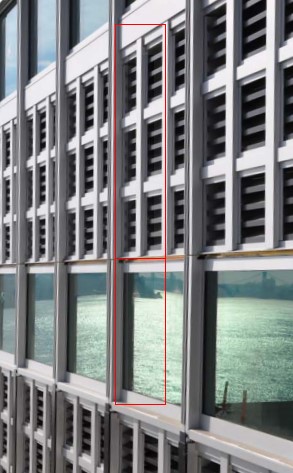

Golden ratios also appear in the design of the windows and curtain wall of the building

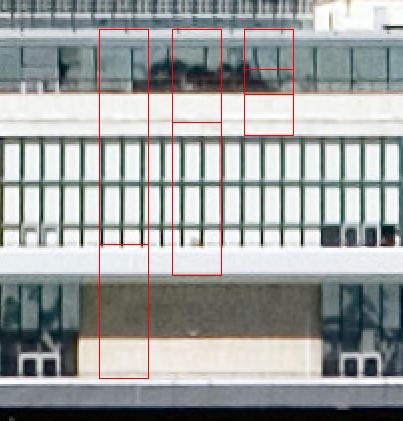

Other golden rectangles and golden ratios dividing points have been designed into the intricate pattern of windows. This is illustrated by golden ratio grid lines shown in the photos below. Click on any for a higher resolution view:

UN-Secretariat-curtain-wall-window-golden-ratio-2
UN Secretariat window configuration reveal golden proportions
UN-Secretariat-curtain-wall-window-golden-ratio

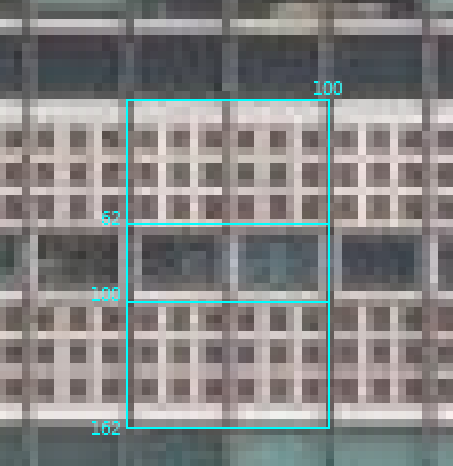

UN-Secretariat-Building-Window-Divider-Pane-Detail-Golden-Ratios
UN-Secretariat-Building-Window-Pane-Golden-Ratios

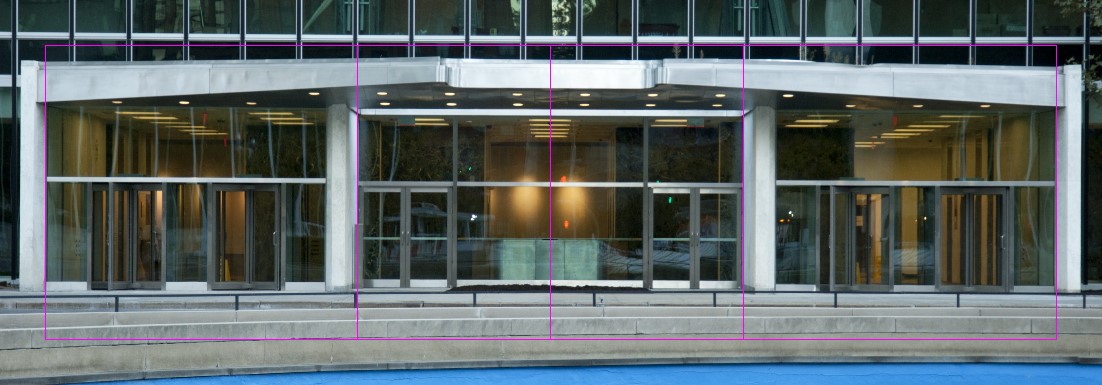

The design of the front entrance is also based on the golden ratio

This attention to detail in the consistent application of design principles welcomes visitors as they enter the UN Building. The front entrance of the Secretariat Building reveals golden ratios in it proportions in the following ways:

  • The columns that surround the center area of the front entrance are placed at the golden ratio point of the distance from the midpoint of the entrance to the side of the entrance.
  • The large open framed areas to the left and right of the center entrance area are golden rectangles.
  • The doors on the left and right side of the center entrance are golden rectangles.
  • The left and center frame sections of the center section is a golden rectangle.

Click on the photo below for a larger version.

UN-Secretariat-Front-Entrance-Golden-Ratio

Even the interior floor plans reflect golden ratios in their design

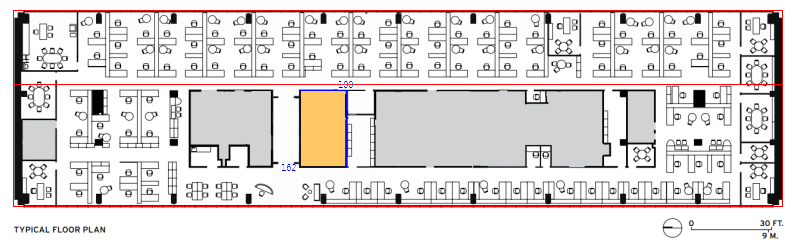

The pattern of golden ratios continued in the interior. Below is one of the representative floor plans, with the hallway dividing the floor at the golden ratio of the buildings cross-section. There is also a central conference room in the shape of a golden rectangle. Click on the image for the full resolution image:

UN-Secretariat-Floor-Plan-Golden-Ratio

Golden ratios were applied in the design of the other UN campus buildings

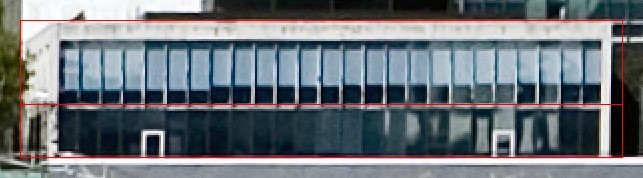

The two buildings behind the Secretariat building on the bank of the river on the east side appear to reveal that the applications of golden ratios in design was carried here too. See the golden ratio grid lines on each of the photos below:

UN-Building-East-South-Golden-Ratio

 An often referenced article to debunk the golden ratio in the UN building is based on the wrong measurement

Many have sought to “debunk” the application of the golden ratio in the design of the UN Building. Most who do either say there is “no evidence at all” or reference a “debunking” article” by a Harvard Ph.D. in Mathematics. This Harvard Ph.D. correctly points out in the article that the simple ratio of the height to width of the building is 505/287 or 1.76, which is not the golden ratio. He stops there, however, apparently not knowing the history of the architects, missing the concept of the three stacked golden rectangles, and not considering the clear dividing lines in the design of the face of the building, or the details in the design of its curtain wall, windows and doors. As illustrated by the intricate nesting of golden ratios in his Modulor design template, Le Corbusier’s passion and vision for the golden ratio was far more sophisticated than to design a building in the simple shape of a golden rectangle. We just need an open mind and a tool like PhiMatrix to do the analysis required to understand his thinking, and appreciate the intricate beauty of his creation. I welcome any additional evidence from anyone who after reading this article still thinks that there is no evidence for the golden ratio here, or that the Markowsky analysis was accurate. The information presented here is as accurate as I could find. I even called the UN to ask for scale drawings or blueprints of the Secretariat building to do more exacting measures than are possible with high resolution photos and basic math. I was told that the UN didn’t have this information and that I should search on Google. Do you agree with the above evidence and conclusions? Comment below and let both golden ratio enthusiasts and debunkers know.

References other than those linked in the article:

http://commons.wikimedia.org/wiki/File:Chrysler_and_UN_buildings.jpg

https://archives.un.org/content/oscar-niemeyer-and-united-nations-headquarters-1947-1949

http://www.aviewoncities.com/nyc/unitednations.htm

http://www.math.nus.edu.sg/aslaksen/teaching/maa/markowsky.pdf

http://en.wikipedia.org/wiki/Donald_in_Mathmagic_Land

https://www.flickr.com/photos/70217867@N07/sets/72157632217322356/

https://www.youtube.com/watch?v=U_ZHsk0-eF0

http://www.nyc-architecture.com/MID/001-dscn1688.jpg

http://0.tqn.com/d/architecture/1/0/D/N/1/UN-Secretariat.jpg

http://c1038.r38.cf3.rackcdn.com/group2/building18211/media/0czj2j4.jpg

http://s76.photobucket.com/user/nknico/media/un/457531.jpg.html

http://www.unmultimedia.org/s/photo/detail/527/0527128.html

UN-Capital-Master-Plan-December-2011 – UN Capital Master Plan Completion of the Secretariat Building Curtain Wall December 2011

UN Building C7 – Revival of an Icon

http://vimeo.com/88132964

Filed Under: Design/Art
